Product Overview:

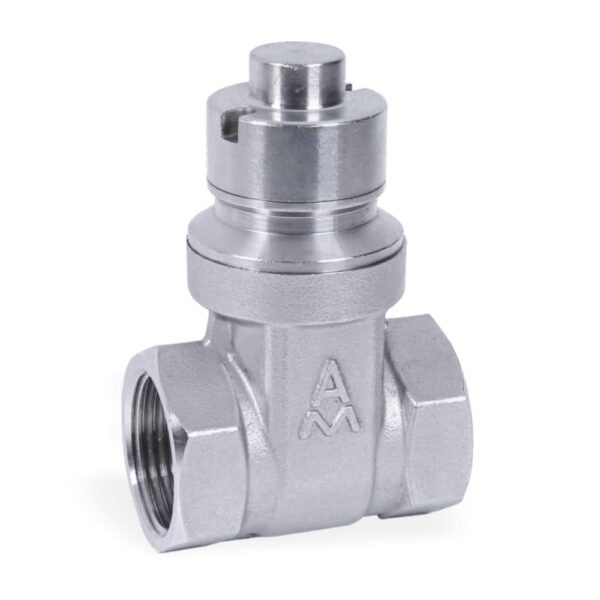

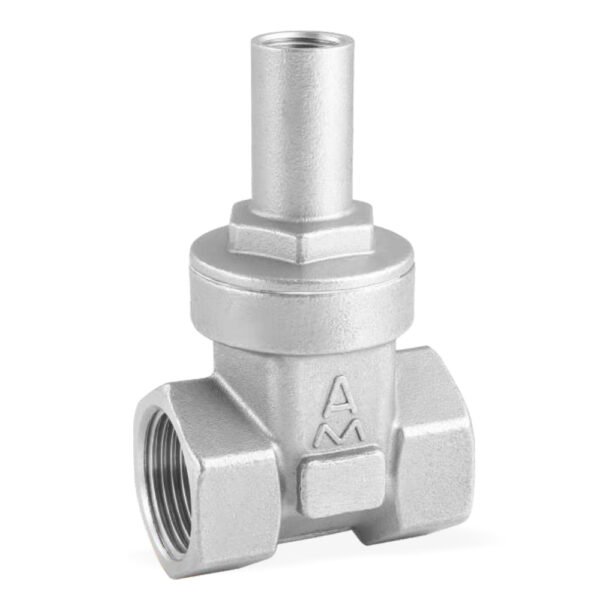

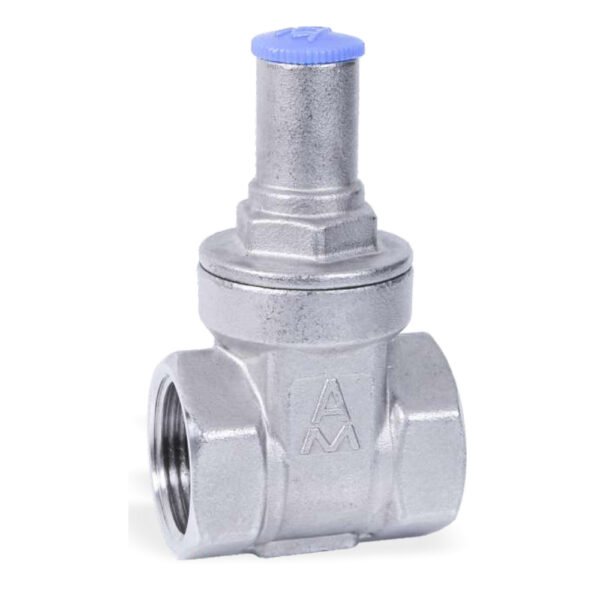

Our Stainless Steel Threaded Gate Valve is a premium-grade industrial solution engineered for precision control and durability in demanding fluid management systems. Designed with robust construction and versatile compatibility, this valve excels in regulating the flow of water, steam, oils, and gases across a wide temperature range. Its threaded design ensures seamless integration into pipelines, while high-quality materials like stainless steel 304/316 guarantee corrosion resistance and long-term reliability. Ideal for applications in chemical processing, HVAC, oil & gas, and water treatment, this valve combines cutting-edge technology with user-centric features to deliver unmatched performance.
1. Technical Specifications
- Nominal Diameter (DN): 1/2″ to 4″ (DN15-DN100), catering to diverse pipeline sizes.
- Nominal Pressure (PN/Class): Class 150 to Class 300, ensuring compatibility with medium- to high-pressure systems.
- Testing Pressure:
- Shell Test: 1.5–6 MPa (218–870 PSI) for structural integrity.
- Seal Test: 1.1–4.4 MPa (160–638 PSI) for leak-proof performance.
- Suitable Mediums: Water, steam, oils, gases, and non-corrosive fluids.
- Operating Temperature Range: -20°C to +300°C (-4°F to 572°F), adaptable to extreme environments.
- Threaded Standards:
- BSP (G, Rc, RP), BSPT, NPT for global compatibility.
- Customizable to meet ANSI, DIN, GB, ISO, GOST, BS, or other industry standards.
2. Body Material Options
- Brass/Bronze: Cost-effective for low-pressure, non-corrosive applications.
- Stainless Steel (201/304/316):
- 304/316 Grade: Superior corrosion resistance for harsh environments (e.g., seawater, chemicals).
- 201 Grade: Budget-friendly alternative for mildly corrosive media.
3. Our Value-Added Services
- Competitive Pricing: Premium quality at factory-direct prices.
- Extended Warranty: 18-month guarantee for peace of mind.
- Customization: Tailored solutions adhering to ANSI, DIN, GB, ISO, GOST, or BS standards.
- Technical Support: Expert guidance from pre-sales to post-installation.
4. Company Strengths
- 40+ Years of Expertise: A trusted leader in valve manufacturing since [Year].
- Material Traceability: Sample preservation for over 10 years ensures quality consistency.
- Global Certifications: API, CE, and ISO-approved for safety and compliance.
- Advanced Facilities: State-of-the-art production lines with rigorous QC protocols.
5. RFQ (Request for Quotation) Checklist
To expedite your inquiry, please provide the following details:
- Standard: ANSI, DIN, GB, ISO, GOST, BS, etc.
- Size: Nominal diameter (e.g., 2″).
- Material: Brass, bronze, or stainless steel grade (304/316).
- Connection Type: BSP, NPT, etc.
- Medium: Water, steam, oil, gas, etc.
- Temperature Range: Operating conditions (e.g., -10°C to 200°C).
Why Choose Us?
Our Stainless Steel Threaded Gate Valve is not just a product—it’s a commitment to excellence. With decades of industry leadership, certified quality, and customizable solutions, we empower your projects to thrive in even the most challenging environments. Contact us today to discuss your requirements and unlock a world of reliability!
