Stainless Steel and Alloy Steel Butt Welded Fittings

Overview

Our Stainless Steel and Alloy Steel Butt Welded Fittings are precision-engineered for high-performance piping systems in demanding industrial environments. Manufactured from premium-grade stainless steel (304/304L, 316/316L, 321, 904L) and alloy steel (ASTM A234 WP5, WP9, WP11, WP22), these fittings offer exceptional corrosion resistance, high-temperature strength, and durability. Designed for seamless integration via butt-welding, they ensure leak-proof connections in critical applications such as chemical processing, power generation, oil and gas, and marine engineering.

Key Features

• Superior Corrosion Resistance:
  • Stainless Steel: Resists oxidation, pitting, and stress corrosion cracking in aggressive environments (e.g., seawater, acids, chlorides).
  • Alloy Steel: Withstands high-temperature and high-pressure conditions with enhanced creep resistance.
• High Strength & Toughness:
  • Stainless steel grades provide excellent tensile and yield strength for structural integrity.
  • Alloy steel fittings are optimized for thermal stability in extreme service conditions.
• Precision Butt-Weld Design:
  • Smooth beveled ends enable full-penetration welding, ensuring strong, durable joints.
  • Minimizes turbulence and pressure drop in fluid flow.
• Temperature & Pressure Tolerance:
  • Stainless steel: Operates from -196°C to 600°C (-320°F to 1112°F).
  • Alloy steel: Withstands up to 815°C (1500°F) depending on grade.
• Hygienic & Low-Maintenance:
  • Stainless steel’s non-porous surface prevents bacterial growth, ideal for food, pharmaceutical, and sanitary applications.
  • Resistant to scaling and fouling, reducing cleaning frequency.
• Customizable Options:
  • Available in a wide range of sizes, schedules, and wall thicknesses.
  • Specialized finishes (e.g., polished, sandblasted, electropolished) for specific applications.

Technical Specifications

Material Grades:

• Stainless Steel:
  • Austenitic: 304/304L, 316/316L, 321, 347 (for general corrosion resistance).
  • Duplex/Super Duplex: 2205, 2507 (for superior strength and chloride resistance).
  • Martensitic: 410, 420 (for wear-resistant applications).
• Alloy Steel:
  • ASTM A234: WP5, WP9, WP11, WP22 (Chrome-Moly grades for high-temperature service).
  • ASTM A420: WPL6, WPL3 (for low-temperature applications).

Dimensions:

• Nominal Pipe Size (NPS): ½” to 48″ (DN15 to DN1200).
• Wall Thickness: Schedule 10S, 40S, 80S, 160, XXS, or custom thickness.
• Pressure Ratings: Up to Class 6000# (varies by material and size).

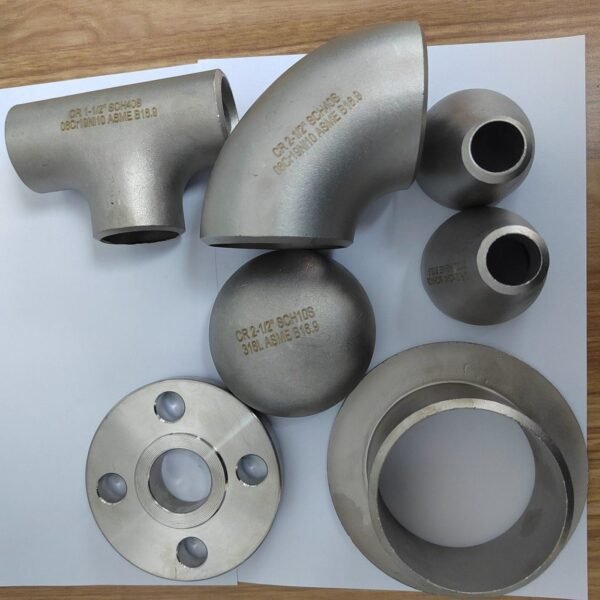

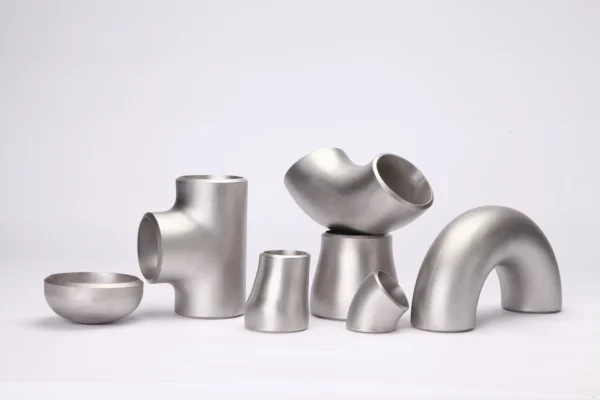

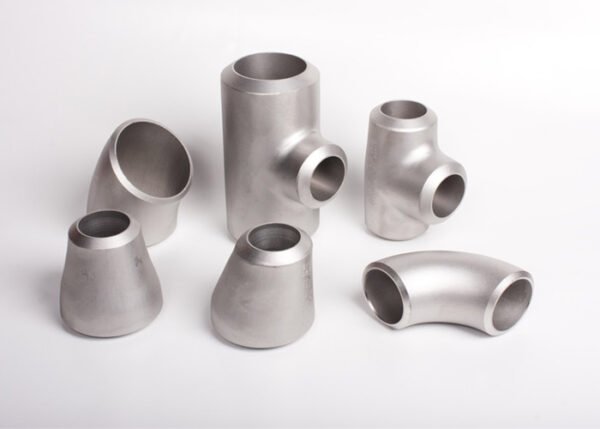

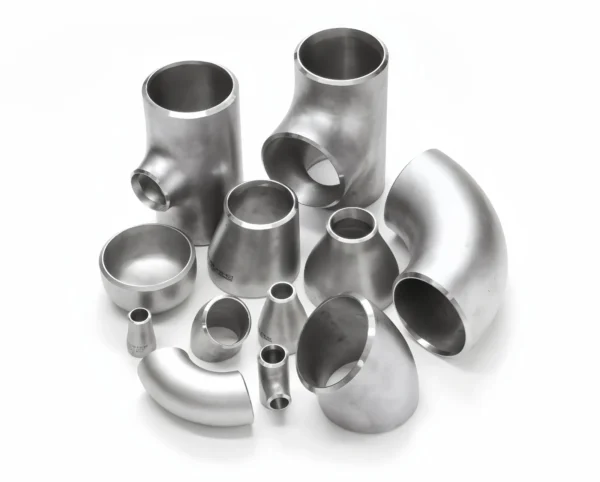

Types Available:

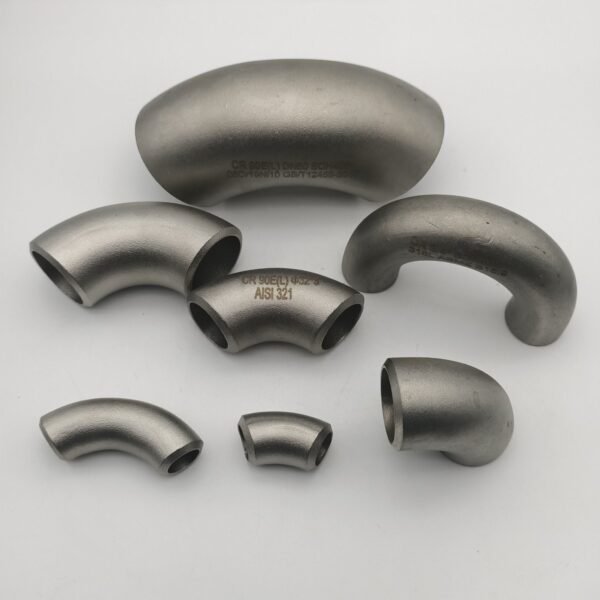

• Elbows: 45°, 90°, 180° (Long Radius/Short Radius).
• Tees: Equal Tee, Reducing Tee.
• Reducers: Concentric Reducer, Eccentric Reducer.
• Caps & Plugs: Pipe End Caps, Blind Flanges.
• Crosses: 4-Way Pipe Cross.
• Stub Ends: For lap joint flange connections.
• Bends: Custom-radius bends for specialized piping layouts.

Surface Finish:

• Pickled & Passivated: Removes surface contaminants and enhances corrosion resistance.
• Polished: Mirror finish (Ra ≤ 0.8μm) for sanitary applications.
• Sandblasted/Electropolished: For improved aesthetics and reduced friction.

Applications

• Chemical & Petrochemical: Corrosive fluid handling, reactors, and distillation columns.
• Power Generation: Steam lines, boiler systems, and nuclear power plants.
• Oil & Gas: Offshore platforms, subsea pipelines, and refinery process piping.
• Pharmaceutical & Food: Hygienic piping systems requiring sterile conditions.
• Marine & Shipbuilding: Seawater cooling systems and cargo transfer lines.
• Water Treatment: Desalination plants and wastewater management.
• Aerospace: High-temperature fuel and hydraulic systems.

Quality Assurance

• Certifications: ISO 9001, PED (Pressure Equipment Directive), ASME B16.9/B16.28, ASTM, and API compliance.
• Testing:
  • Hydrostatic Testing: Verifies pressure integrity.
  • PMI (Positive Material Identification): Ensures chemical composition accuracy.
  • Radiographic Inspection (RT): Detects internal weld defects.
  • Dye Penetrant Testing (PT): Checks for surface cracks.
• Traceability: Each fitting is marked with material grade, heat number, and manufacturing standards for full traceability.

Advantages Over Carbon Steel Fittings

• Longer Service Life: Stainless and alloy steel resist corrosion and oxidation better than carbon steel.
• Reduced Maintenance Costs: Lower susceptibility to scaling, pitting, and failure in harsh environments.
• Versatility: Suitable for both high-temperature and cryogenic applications.
• Hygienic Compliance: Meets stringent sanitary standards for food and pharmaceutical industries.

Product Range

1. Standard Fittings: Conforming to ASME B16.9 for general industrial use.
2. Large-Diameter Fittings: Custom sizes up to 48″ for infrastructure projects.
3. High-Temperature Alloy Fittings: Grade WP22 for power plant applications.
4. Low-Temperature Fittings: A420 WPL6 for cryogenic storage and LNG facilities.
5. Custom Fittings: Tailored dimensions, wall thickness, and bevel angles per client specifications.

Packaging & Delivery

• Packing: Plywood cases, steel crates, or bulk shipping with protective wrapping (e.g., VCI paper, foam inserts).
• Shipping: FOB, CIF, or EXW terms via sea, air, or land transport.
• Lead Time: 15–45 days based on order quantity and customization.

Why Choose Our Stainless Steel and Alloy Steel Butt Welded Fittings?

• Reliable Performance: Proven in critical applications worldwide.
• Customization: Flexible manufacturing for unique project requirements.
• Global Compliance: Meets international standards for safety and quality.
• Expert Support: Technical assistance for material selection, welding procedures, and installation.

Contact Us

For inquiries, technical datasheets, or competitive quotes, please reach out to our sales team. We are committed to delivering high-quality stainless steel and alloy steel butt-welded fittings that ensure seamless, leak-free piping systems for your most demanding projects.

Elevate Your Pipeline Performance with Our Premium Stainless & Alloy Steel Fittings!
