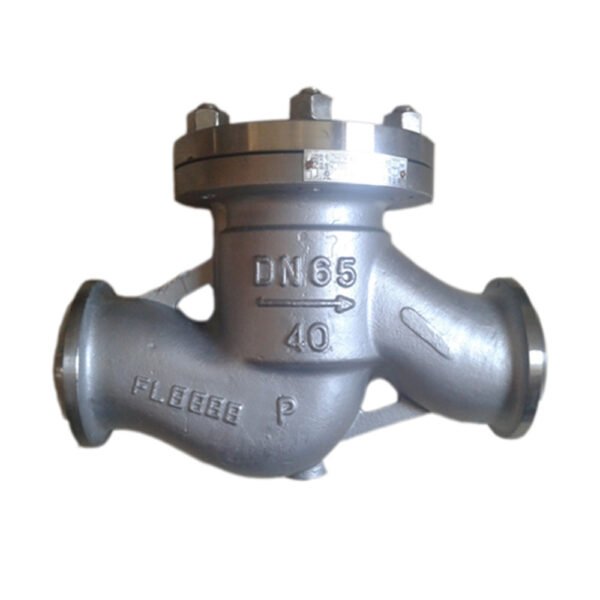

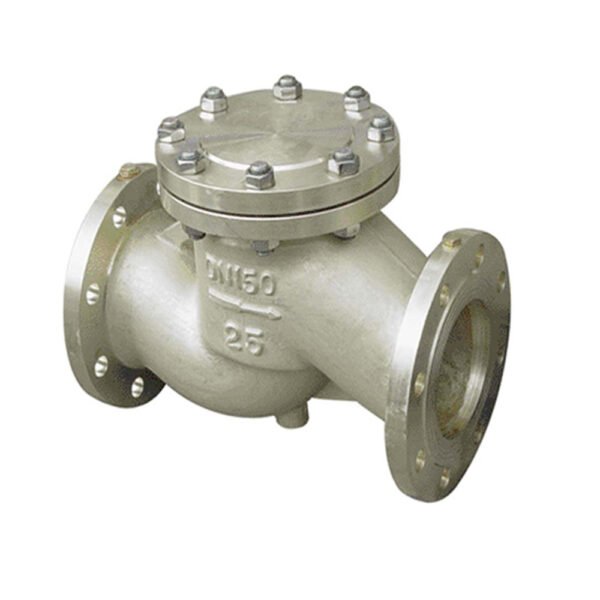

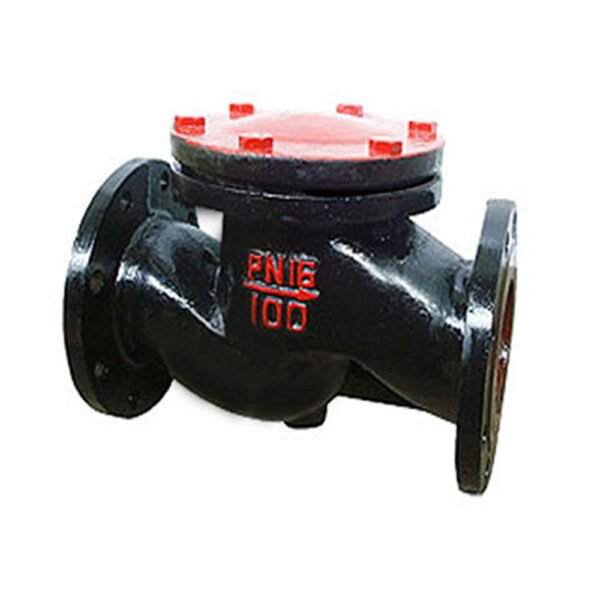

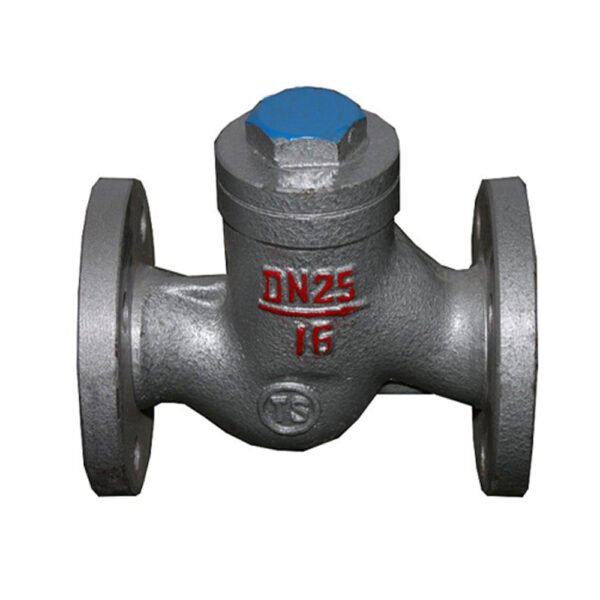

Lift Type Check Valve – Precision Engineering for Unidirectional Flow Control

Introducing our Lift Type Check Valve, a masterfully engineered solution designed to ensure seamless, unidirectional flow in high-pressure industrial systems. Featuring a robust lift mechanism, this valve prevents backflow with exceptional reliability, making it ideal for applications involving water, steam, petroleum, oil, and gas. Its versatile design accommodates a wide range of operating conditions, from extreme temperatures to corrosive environments, ensuring long-term performance and safety.

Key Features & Benefits

1. High-Performance Technical Specifications
   • Nominal Diameter (DN): DN15 (1/2″) to DN600 (24″), providing flexibility for pipelines of all sizes.
   • Nominal Pressure (PN): 1.0–6.4 MPa (Class 150–Class 900), suitable for both moderate and ultra-high-pressure systems.
   • Testing Pressure:
     • Shell Test: 1.5–9.6 MPa, ensuring structural integrity under extreme pressure conditions.
     • Sealing Test: 1.1–7 MPa, guaranteeing a leak-proof seal for uninterrupted operation.
   • Suitable Mediums: Water, steam, petroleum, oil, and gas, offering versatility across diverse industries.
   • Working Temperature: -20°C to +450°C, ideal for both cryogenic and high-temperature applications.
2. Globally Compliant Design Standards
   • Design Codes: API 6D (BS1868), EN10739, DIN3356, ensuring adherence to international quality and safety benchmarks.
   • Face-to-Face Dimensions: ASME B16.10, EN 558, DIN3202, facilitating easy installation and retrofitting in existing systems.
   • Inspection & Testing: API 598, EN12266, DIN3230, guaranteeing flawless performance through rigorous quality control.
3. Premium Material Options for Enhanced Durability
   • Body Material Choices:
     • Cast Iron: Cost-effective for low-pressure applications.
     • Ductile Cast Iron: Superior strength and impact resistance.
     • Carbon Steel: High-pressure and high-temperature suitability.
     • Stainless Steel 304/316: Excellent corrosion resistance for harsh environments.
4. Unmatched Services & Support
   • Best Price with Premium Quality: Maximize efficiency without compromising on performance.
   • 18-Month Guarantee Period: Extended warranty for peace of mind and long-term reliability.
   • Multi-Standard Compliance: ANSI, DIN, GB, ISO, GOST, BS, and more, ensuring global compatibility.
   • Customization Options: Tailored solutions for specific pressure, temperature, and medium requirements.
5. Company Strengths & Certifications
   • 40+ Years of Industry Expertise: Proven track record in delivering high-performance valves.
   • Long-Term Material Sample Preservation (10+ Years): Ensures traceability and quality assurance.
   • Certifications: API, CE, ISO 9001, PED, and ATEX, reflecting our commitment to safety and excellence.

Applications

• Oil & Gas Refineries – Reliable flow control in high-pressure pipelines.
• Power Generation Plants – Steam and water circulation systems.
• Chemical Processing Industries – Handling corrosive fluids with ease.
• Water Treatment Facilities – Preventing backflow in municipal and industrial water systems.
• HVAC Systems – Ensuring efficient circulation in heating and cooling networks.
• Marine & Offshore Installations – Withstanding harsh marine environments.
