American ANSI Standard Gate Valves

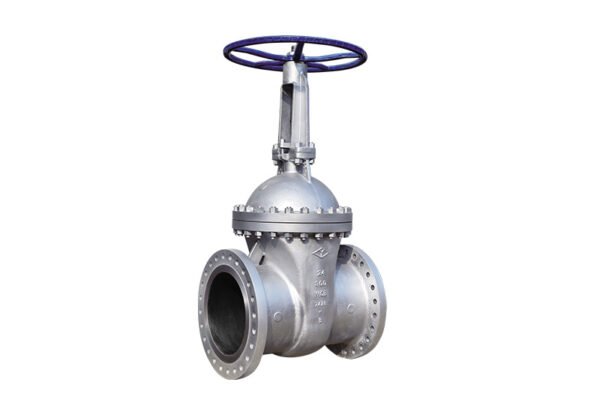

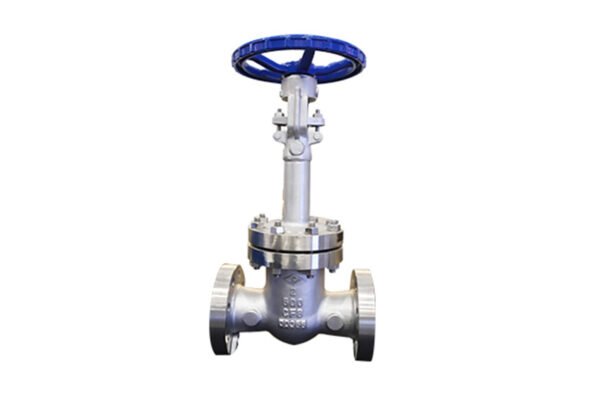

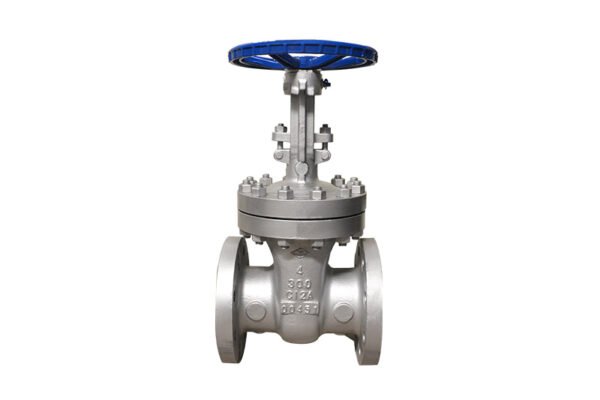

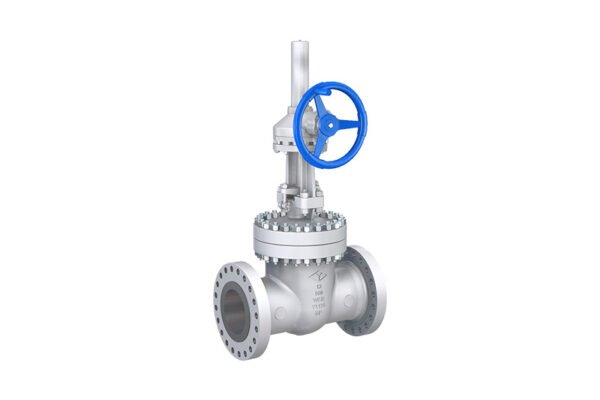

ANSI Standard Gate Valve: Precision Engineering for Unmatched Performance

1. Technical Specifications: Unrivaled Precision and Versatility

• Nominal Diameter (DN): Ranging from a compact 1-1/2 inches to a robust 80 inches, our ANSI standard gate valves are designed to accommodate a wide array of piping systems, ensuring seamless integration and optimal flow control.
• Nominal Pressure (PN): With pressure ratings spanning from Class 150 to Class 900, these valves are engineered to withstand the most demanding industrial environments, providing reliable operation under high-pressure conditions.
• Testing Pressure (PN in MPa): Rigorous testing ensures peak performance. Shell testing pressure ranges from 1.5 to 9.6 MPa, while sealing pressure is meticulously maintained between 1.1 and 7 MPa, guaranteeing leak-free operation.
• Suitable Mediums: Versatile and adaptable, our gate valves are suitable for a variety of mediums including water, steam, oils, and gases, making them ideal for diverse industrial applications.
• Working Temperature: Operating efficiently within a temperature range of -30°C to +400°C, these valves are built to endure extreme thermal conditions without compromising performance.

2. Design Excellence: Adhering to Global Standards

• Design Standards: Our valves are crafted in accordance with internationally recognized standards such as API 600, EN10434, and DIN3352, ensuring compliance with the highest quality and safety benchmarks.
• Face-to-Face Dimensions: Conforming to ASME B16.10, EN 558, and DIN3202, our valves guarantee easy installation and compatibility with existing piping systems.
• End Flange Specifications: Available in ASME B16.5 (ASME B16.47), EN1092, and DIN2533 standards, our flanges ensure secure and leak-proof connections.

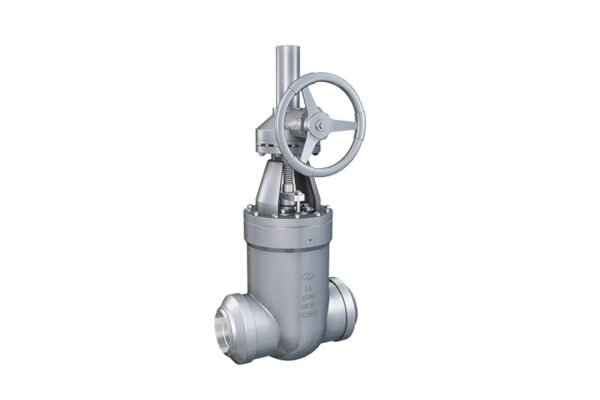

• Buttwelding Ends: Designed to meet ASME B16.25, EN12627, and DIN3239 standards, our buttwelding ends facilitate seamless integration into welded piping systems.
• Inspection and Test Protocols: Following API 598, EN12266, and DIN3230, our valves undergo stringent inspection and testing procedures to ensure flawless operation and longevity.

3. Body Material Options: Tailored to Your Needs

Our ANSI standard gate valves are available in a range of materials, including ductile cast iron, cast iron, cast steel, and stainless steel 304/316, allowing you to choose the perfect valve for your specific application and environmental conditions.

4. Our Commitment to Excellence: Services That Set Us Apart

• Competitive Pricing with Uncompromised Quality: We offer the best prices without compromising on the quality of our products, ensuring you get the best value for your investment.
• 18-Month Guarantee Period: Our valves come with an 18-month guarantee, providing you with peace of mind and assurance of our product’s reliability and durability.
• Customization Options: We cater to a wide range of standards including ANSI, DIN, GB, ISO, GOST, BS, and more, ensuring our valves meet your specific requirements and preferences.

5. Company Information: A Legacy of Trust and Expertise

• Over 40 Years of Professional Experience: With more than four decades in the industry, we have honed our skills and expertise to deliver valves that exceed expectations.
• Material Sample Preservation: We preserve samples of materials for over 10 years, ensuring traceability and accountability for every valve we produce.
• Safety Approvals: Our valves have obtained safety approvals from API, CE, and ISO, attesting to their compliance with international safety and quality standards.

6. Frequently Asked Questions (FAQs): Your Queries Answered

• Standard: Which standards do your valves comply with?
• Size: What size options are available for your ANSI standard gate valves?
• Material: What materials are your valves made of?
• Connection Type: What types of connections are available for your valves?
• Medium: Which mediums are your valves suitable for?
• Temperature: What is the working temperature range of your valves?

Choose our ANSI standard gate valves for unparalleled performance, reliability, and versatility. Contact us today to discuss your specific requirements and let us provide you with the perfect valve solution for your industrial needs.
